BSP passive brackets have been designed with stricter regulations regarding thermal insulation parameter of exterior partitions in mind. Brackets have structural function and transfer vertical and horizontal loads to the main bearing structure of a building. Specially designed shape and materials used in production result in relatively high load capacity and favourable thermal parameters at the same time. Thanks to BSP passive solutions the “thermal bridges” phenomenon can be almost entirely eliminated.
KW2 PAS bracket is a cheaper version of KW1 PAS bracket as it consists of only one aluminium element. Profile is fixed directly to plastic material as there is no socket for it. Installation is a little bit harder in this case.
- Alloy Grade: EN AW-6060 lub EN AW-6063
- Delivery status: T6 lub T66
- Reaction to fire class: B-s3-d0
- Corrosion resistance: C3

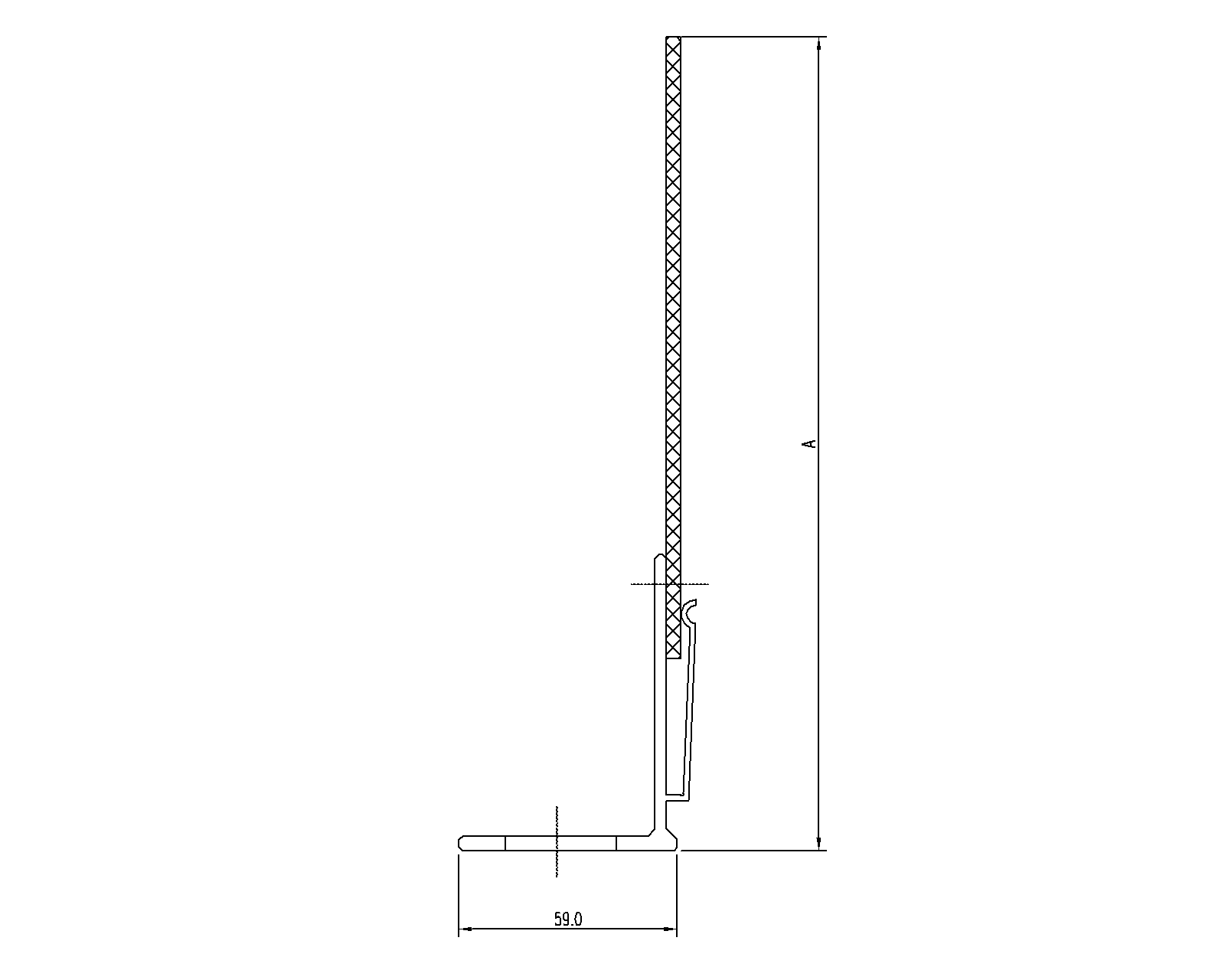

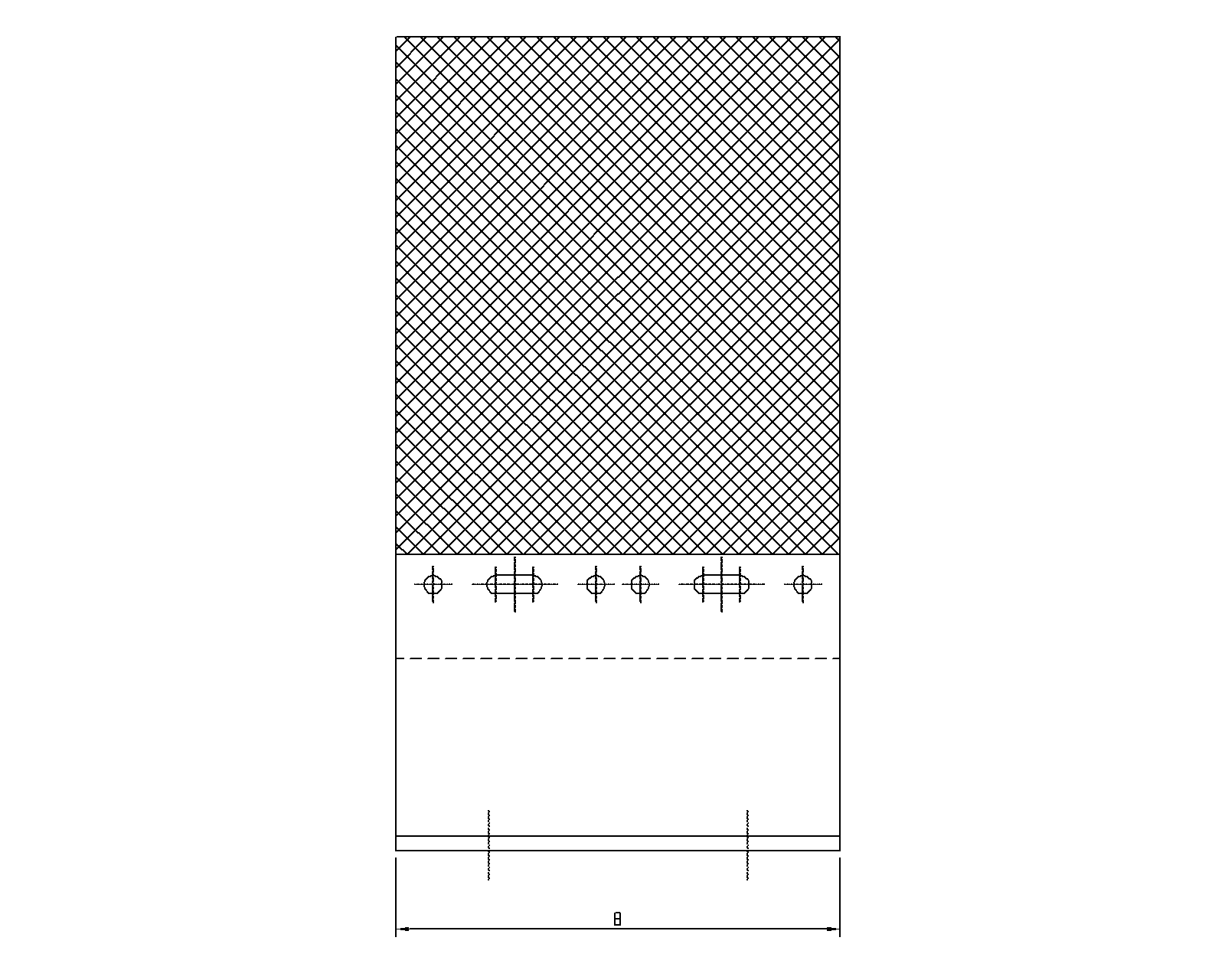

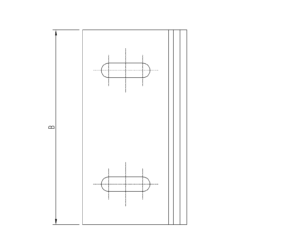

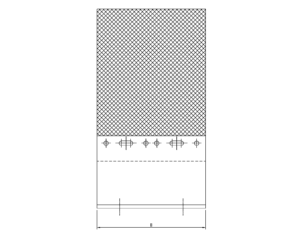

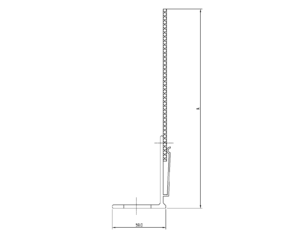

| Variations | Dimension A [mm] | Dimension B [mm] |
|---|---|---|
| KW2 PAS 170-150 FIX/LOS | 170 | 150 |
| KW2 PAS 170-120 FIX/LOS | 170 | 120 |
| KW2 PAS 170-90 FIX/LOS | 170 | 90 |
| KW2 PAS 170-60 FIX/LOS | 170 | 60 |
| KW2 PAS 200-150 FIX/LOS | 200 | 150 |
| KW2 PAS 200-120 FIX/LOS | 200 | 120 |
| KW2 PAS 200-90 FIX/LOS | 200 | 90 |
| KW2 PAS 200-60 FIX/LOS | 200 | 60 |
| KW2 PAS 220-150 FIX/LOS | 220 | 150 |
| KW2 PAS 220-120 FIX/LOS | 220 | 120 |
| KW2 PAS 220-90 FIX/LOS | 220 | 90 |
| KW2 PAS 220-60 FIX/LOS | 220 | 60 |
| KW2 PAS 240-150 FIX/LOS | 240 | 150 |
| KW2 PAS 240-120 FIX/LOS | 240 | 120 |
| KW2 PAS 240-90 FIX/LOS | 240 | 90 |
| KW2 PAS 240-60 FIX/LOS | 240 | 60 |
| KW2 PAS 260-150 FIX/LOS | 260 | 150 |
| KW2 PAS 260-120 FIX/LOS | 260 | 120 |
| KW2 PAS 260-90 FIX/LOS | 260 | 90 |
| KW2 PAS 260-60 FIX/LOS | 260 | 60 |
| KW2 PAS 280-150 FIX/LOS | 280 | 150 |
| KW2 PAS 280-120 FIX/LOS | 280 | 120 |
| KW2 PAS 280-90 FIX/LOS | 280 | 90 |
| KW2 PAS 280-60 FIX/LOS | 280 | 60 |
