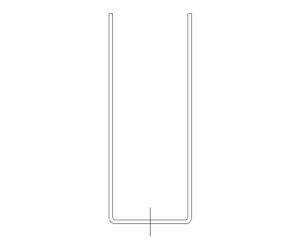

U shaped KWD bracket is used to fix timber elements to buildings structure. It has both fixed and sliding slots on its sides. Timber elements can be up to 50 mm wide.
- Alloy Grade: EN AW-6060 lub EN AW-6063
- Delivery status: T6 lub T66
- Reaction to fire class: A1
- Corrosion resistance: C3
| Variations | Dimension A [mm] | Dimension B [mm] |
|---|---|---|
| KWD/160-85 | 160 | 85 |
| KWD/140-85 | 140 | 85 |
| KWD/120-85 | 120 | 85 |
| KWD/100-85 | 100 | 85 |
| KWD/80-85 | 80 | 85 |
| KWD/60-85 | 60 | 85 |
| KWD/160-160 | 160 | 160 |
| KWD/140-160 | 140 | 160 |
| KWD/120-160 | 120 | 160 |
| KWD/100-160 | 100 | 160 |
| KWD/80-160 | 80 | 160 |
| KWD/60-160 | 60 | 160 |
