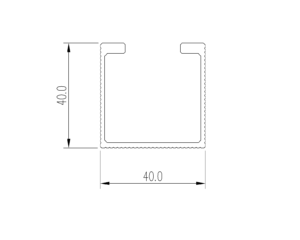

KWRC is a C shaped profile used as a support in middle part of cladding panels. It’s held by KWE element as part of threaded rod system. 40 mm grooved front surface area is wide enough to use adhesive systems. Side parts at the back of the profile increase its stiffness.
- Alloy Grade: EN AW-6060 lub EN AW-6063
- Delivery status: T6 lub T66
- Reaction to fire class: A1
- Corrosion resistance: C3
| Parameter | Value |
|---|---|
| lx | 6,200 cm4 |
| ly | 6,770 cm4 |
| Wx | 2,981 cm3 |
| Wy | 3,385 cm3 |
| Field | 2,590 cm2 |
| Weight | 0,699 kg/m |
