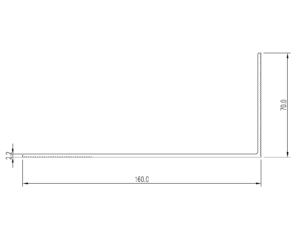

KWRG profile is used to stiffen window sills made of cladding panels. 160 mm long side of the profile enables fixing point of the cladding panel to be move further from the brackets axis.
- Alloy Grade: EN AW-6060 lub EN AW-6063
- Delivery status: T6 lub T66
- Reaction to fire class: A1
- Corrosion resistance: C3
| Parameter | Value |
|---|---|
| lx | 131,388 cm4 |
| ly | 17,280 cm4 |
| Wx | 12,695 cm3 |
| Wy | 2,934 cm3 |
| Field | 4,819 cm2 |
| Weight | 1,301 kg/m |
