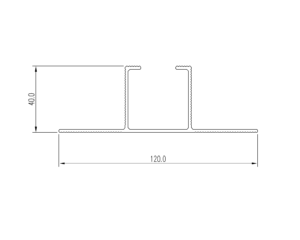

KWRP is a T profile used at connection of two cladding panels. It’s held by KWE element as part of threaded rod system. 120 mm wide grooved front surface area allows for greater tolerance of joint location and enables the panel fixing to be 45 mm from its edge. Side parts at the back of the profile increase its stiffness.
- Alloy Grade: EN AW-6060 lub EN AW-6063
- Delivery status: T6 lub T66
- Reaction to fire class: A1
- Corrosion resistance: C3
| Parameter | Value |
|---|---|
| lx | 7,230 cm4 |
| ly | 29,670 cm4 |
| Wx | 2,493 cm3 |
| Wy | 4,945 cm3 |
| Field | 3,680 cm2 |
| Weight | 0,994 kg/m |
