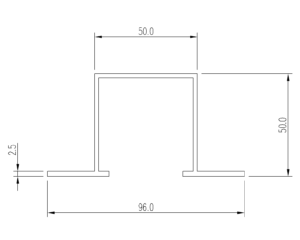

RW2C is a top hat profile designed for short outreaches. It is fixed directly to the buildings structure, which due to lack of brackets results in lower cost of subframe. It can also be used as a second horizontal layer fixed to vertical L and T profiles for narrow cladding panels.
- Alloy Grade: EN AW-6060 lub EN AW-6063
- Delivery status: T6 lub T66
- Reaction to fire class: A1
- Corrosion resistance: C3
| Parameter | Value |
|---|---|
| lx | 17,086 cm4 |
| ly | 30,038 cm4 |
| Wx | 6,193 cm3 |
| Wy | 6,258 cm3 |
| Field | 4,321 cm2 |
| Weight | 1,166 kg/m |
