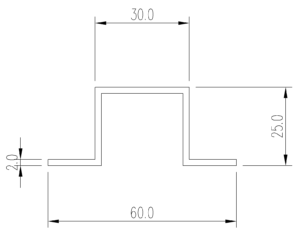

RW2D is a top hat profile designed for short outreaches. It is fixed directly to the buildings structure, which due to lack of brackets results in lower cost of subframe. It can also be used as a second horizontal layer fixed to vertical L and T profiles for narrow cladding panels.
- Alloy Grade: EN AW-6060 lub EN AW-6063
- Delivery status: T6 lub T66
- Reaction to fire class: A1
- Corrosion resistance: C3
| Parameter | Value |
|---|---|
| lx | 2,002 cm4 |
| ly | 5,407 cm4 |
| Wx | 1,548 cm3 |
| Wy | 1,802 cm3 |
| Field | 2,120 cm2 |
| Weight | 0,572 kg/m |
